Cutting and extending LED strip works well when you know the correct cutting points, suitable connection methods and how to size the installation correctly.
Many people wonder whether LED strip can be cut freely, when an extension piece is needed and how two strip sections should be joined together. In practice, a successful result depends on three things: the correct cutting point, a suitable connection method and ensuring that the power supply and voltage suit the entire installation.
In this article, we'll go through step by step how to cut LED strip correctly, how to extend it neatly and when to use connectors or soldering. Finally, we'll also explain what needs to be checked before the strip is fixed permanently in place.
Where Can LED Strip Be Cut?
LED strip cannot be cut at just any point. Every strip has pre-determined cutting points, usually marked with a scissors symbol, a line or a cutting mark placed between the copper pads. When the strip is cut at the correct point, the electrical circuit remains intact and the remaining section works normally.
Before you cut LED strip, check at least these things:
• find the clear cutting mark on the strip
• ensure the strip is disconnected from power before handling
• use a clean, sharp tool so the cut edge is straight
• leave the copper contact pads intact if you intend to extend the strip later
If the strip is cut in the wrong place, the result may be a non-functioning strip section or a difficult connection to make. That's why accuracy is important precisely at the cutting stage.
How is LED Strip Extended in Practice?
Extending LED strip means in practice that two separate strip sections are electrically connected to each other. This can be done in several ways depending on whether you want a quick, discreet or the most durable solution.
The most common extension methods are:

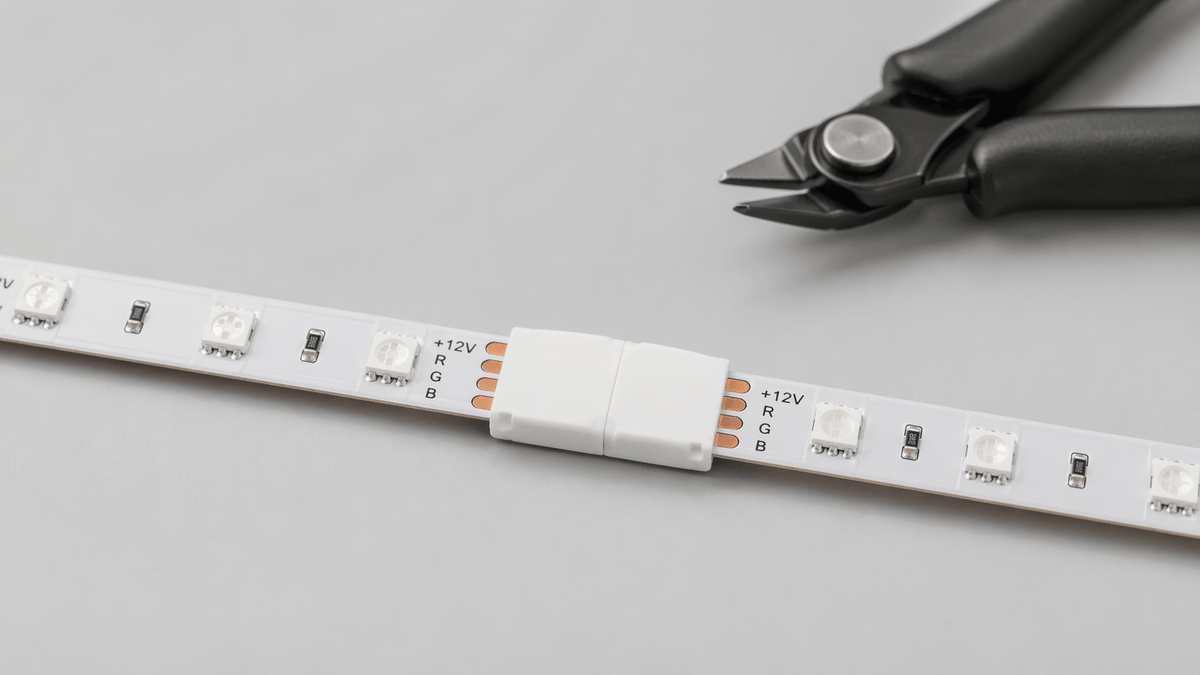

• direct connector between two strip sections
• extension using wire when you want distance between sections
• corner joint when the strip needs to go neatly around a corner
• soldering when you want the most reliable and mechanically durable connection
The quickest method is usually a connector, but it's not the best option for all strips. In tight installations, inside profiles or in long-lasting installations, a soldered connection may be a more reliable solution.
Connector or Soldering – Which Should You Choose?
Connectors are easy and quick to use, so they're well suited to many basic installations. They're a good choice especially when you want to complete an installation without soldering tools. Soldering requires more precision, but the end result can be electrically and mechanically excellent.
A connector is often a good choice when:
• you want to complete the installation quickly
• it's a short extension or simple connection
• you're using an LED strip model suitable for connectors
• the installation location remains easily serviceable
Soldering is often a better option when:
• you want the lowest profile and most discreet connection
• the connection will be inside a profile, cabinet or other structure
• the installation requires good mechanical durability
• it's a more demanding or long-term installation
The most important thing is that the connection method suits the particular strip, space and intended use.
What Should Be Considered When Extending LED Strip to Greater Lengths?
Simply making the connection isn't enough. When LED strip is extended, the total length increases and at the same time the electrical requirements change. If length is added excessively without proper planning, the result may be voltage drop, brightness differences or uneven light.
So before extending, it's worth checking:
• how much power the LED strip consumes per metre
• how long the complete installation is intended to be
• whether the power supply has sufficient capacity for the entire installation
• whether it makes more sense to use 12V or 24V strip
If you want to size the installation correctly, also read How Long an LED Strip from One Power Supply?. Additionally, the article 12V or 24V LED Strip – Which Should You Choose? helps in selecting the right voltage, especially for longer runs.
How to Ensure a Successful Installation Before Final Fixing
When the strip has been cut and connected, it's worth testing the installation before final fixing. This saves time and reduces unnecessary dismantling if a connection doesn't work as expected.
Before final fixing, you should do at least these checks:
• test that all strip sections light up evenly
• verify polarity at all connections
• check that the connection point isn't subject to pulling or crushing stress
• ensure the power supply isn't overloaded
Summary
Cutting and extending LED strip works well when the cut is made at marked points, the connection method is chosen correctly and the installation is sized technically right. Careful preparation reduces errors and makes the result both neat and functional.
The key points are:
• LED strip should only ever be cut at marked points
• extension can be done with a connector, wire or soldering
• choosing between connector or soldering depends on the application and required durability
• total length, voltage and power supply must be considered before extending
• the entire installation should always be tested before final fixing
