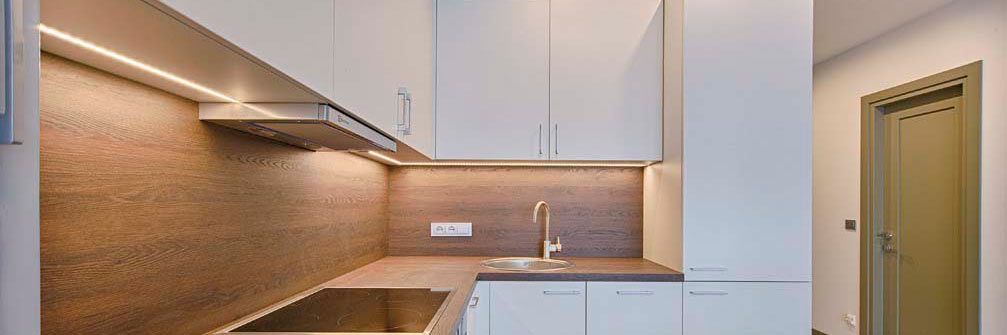

Kitchen LED profiles – stylish and practical lighting

Kitchen LED profile – choose the right installation method

The guide below helps you compare product features and avoid the most common selection mistakes.

Surface-mounted profile under a wall cabinet

A surface-mounted LED profile is often the easiest choice when retrofitting a kitchen. It is fixed to the underside of the cabinet without a separate routed groove. Check the height of the profile, the visibility of the fixings and the cable route. The position of the light in relation to the front edge of the worktop affects whether shadows are created.

Recessed profile for a discreet result

A recessed profile is suitable for a kitchen when a groove matching the dimensions of the profile can be made in the underside of the cabinet. Before installation, check the width and depth of the groove, the dimensions of the flange and whether the material is suitable for routing. Careful measuring helps to get the cover and the furniture surface into a neat line.

Corner profile for directing the light

A corner profile can be placed, for example, on the front edge of the cabinet or in the upper corner of the backsplash area. An angled light direction can help illuminate the worktop and the wall surface, but the position must be chosen so that the strip does not dazzle the user. Check the direction of the light before the final fixing.

LED strip, diffuser and colour rendering

Choose an LED strip that fits the inner width of the profile. On the worktop, it is worth prioritising sufficient light output and good colour rendering, for example CRI 90+. A COB strip or a suitable opal diffuser helps to reduce visible light dots. Also check the power of the strip and whether the profile's heat management is suitable.

Accessories and finishing the installation

Plan in advance the required profile length, covers, end caps and fixings. The length of the profile and the cutting interval of the LED strip are not always the same. Take into account the placement and serviceability of the power supply and, where necessary, connections made by an electrical professional.

Compatible products and accessories

Always check the model-specific dimensions and compatibility in the product information. Also take a look at the following options:

• Kitchen LED strips
• Surface-mounted profiles
• Recessed profiles
• Corner profiles

Frequently asked questions

Which LED profile is suitable for under a wall cabinet?

A surface-mounted profile is often the easiest for retrofitting, while a recessed profile requires an installation groove.

Is a diffuser needed in the kitchen?

A diffuser can soften light dots and reduce glare.

Which profile gives angled light?

A corner profile directs the light at an angle according to the structure of the profile.

Can a COB strip be installed in the profile?

Often yes, when the width, power and heat management are compatible.
