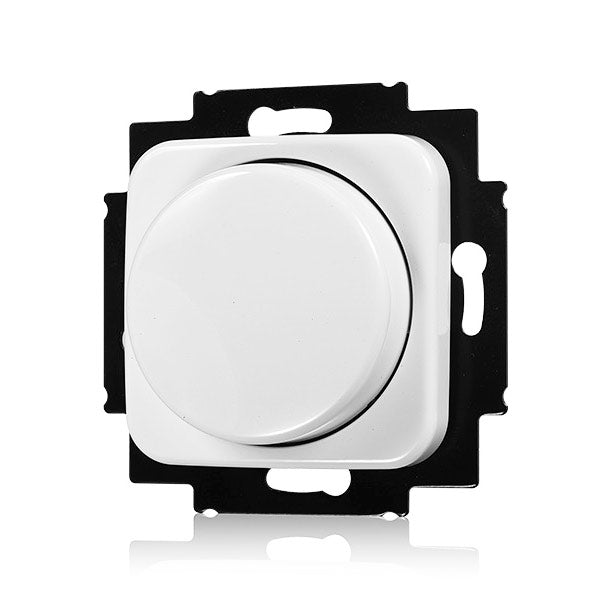

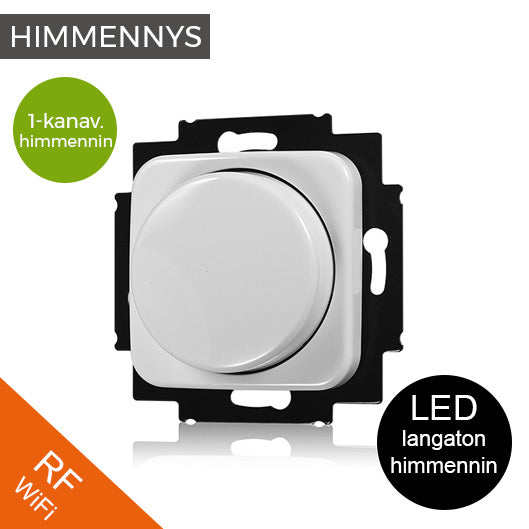

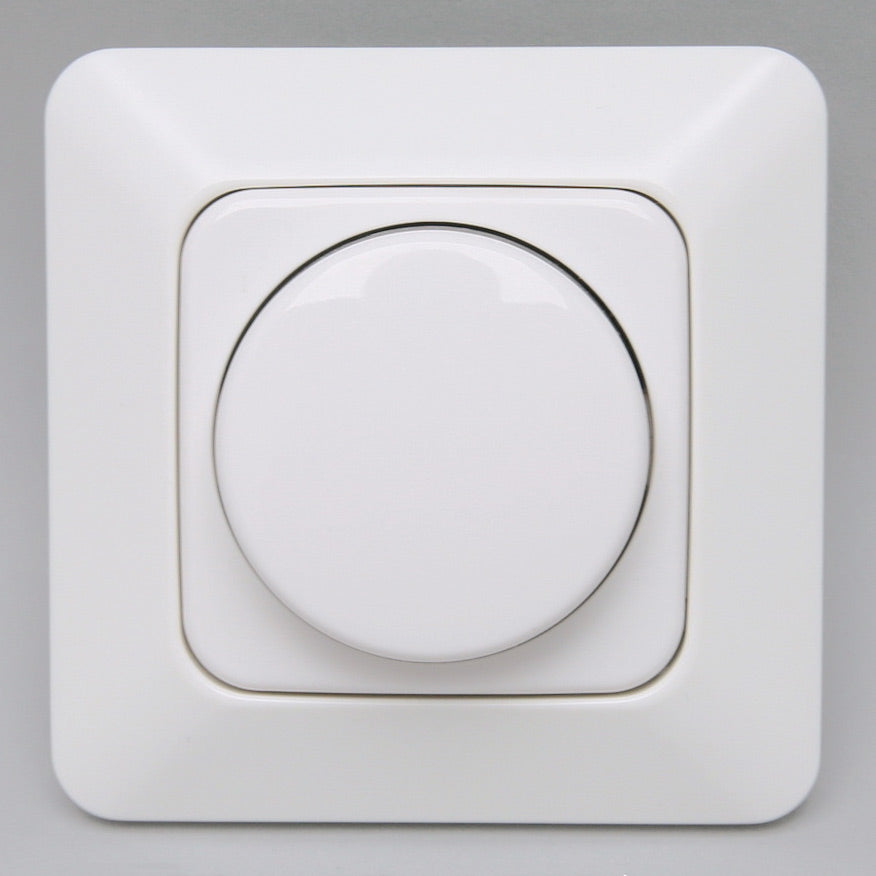

LED dimmer RF WiFi wireless, 1 channel recessed rotary controller

RF WiFi series wireless flush-mounted roller dimmer, compatible with Jussi series frames. Very easy to install and use! The roll dimmer is compatible with all our RF WiFi series products.

Flush mountable for channel 1. LED-dimmer/roll control (compatible with the Jussi range)

Requires 12-24V to operate LED-for the control of tapes e.g. RF WiFi dimmer/receiver  or 230V control (i.e. for TRIAC dimmable luminaires or TRIAC transformers) 230V TRIAC wireless RF dimmer.

The roller control acts as a normal on/off switch and the rotation of the roller dims and brightens the light. Colour white. Can be mounted directly on the booth frames used in Finland, suitable for example for the Jussi series frames (not included). Easy to retrofit, because the wiring for the roller control does not come at all, but works with a battery. In addition to the roller controller, the colours of the strip can be adjusted from a smartphone if an RF WiFi converter is installed in the same system.

Several receivers (8) can be paired to the controller.

- Operating distance approx. 20m

- IP20

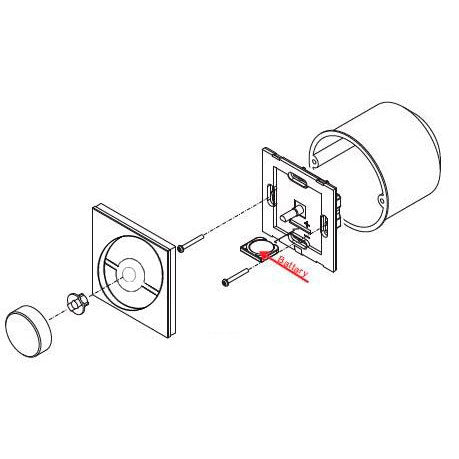

- Powered by 3V battery (CR2032), battery life approx. 2-3v, battery included. The battery can be replaced.

- operating frequency 868MHz

- can be paired with multiple receivers

- white plastic

- size 86 x 86mm, height 41mm

Compatible RF WiFi series receivers for this wireless controller:

Single-colour dimmable LED-strips

• 12-24V for dimmable monochrome LED-tapes (max. 96W 12V LED-ribbon or 192W 24V LED-tape) : LED-receiver 1 x 8A LED-receiver 12-36V - RF WiFi
• If you install more LED-tapes, up to 5 x 120W 24V LED-tapes: 4 x 5A for monochrome LED-RF WiFi for ribbons (NOTE! (all ribbons installed in this receiver will work at the same time as one group)
• If you install more LED-ribbons, up to 5 x 1192W 24V LED-tapes: 4 x 8A for monochrome LED-RF WiFi for ribbons (NOTE! (all ribbons installed in this receiver will work at the same time as one group)



230V LED-lamps with transformers and LED-lamps and bulbs such as E27, E14, etc.

• 230V TRIAC for dimmable LED-lamps and dimmable lamps LED-dimmable light bulbs: 230V TRIAC dimmer - RF WiFi
• 230V ON/OFF RELE for all types LED-luminaires: 230V ON/OF RELE - RF WiFi



Connecting the receiver to work with a remote control or button controller:

• Connect LED strip to the receiver
• Turn on the button/remote control by removing the protection between the radiator and the button/regulator, then the button/regulator starts working
• Activate the button/remote control with the ON button and press the receiver's Learning key-button on the receiver. Immediately afterwards, turn the knob.
• The connection is complete when LEDthe :s flash

One receiver can be controlled by more than one button (max. 8 buttons), if you want to control the light from both doorways of a room.

Disconnection of receiver and button/remote control:

• Press the learning key button for 5 seconds.

Requires the key to be pressed for 5 seconds for it to work. receiver.

3 year warranty
