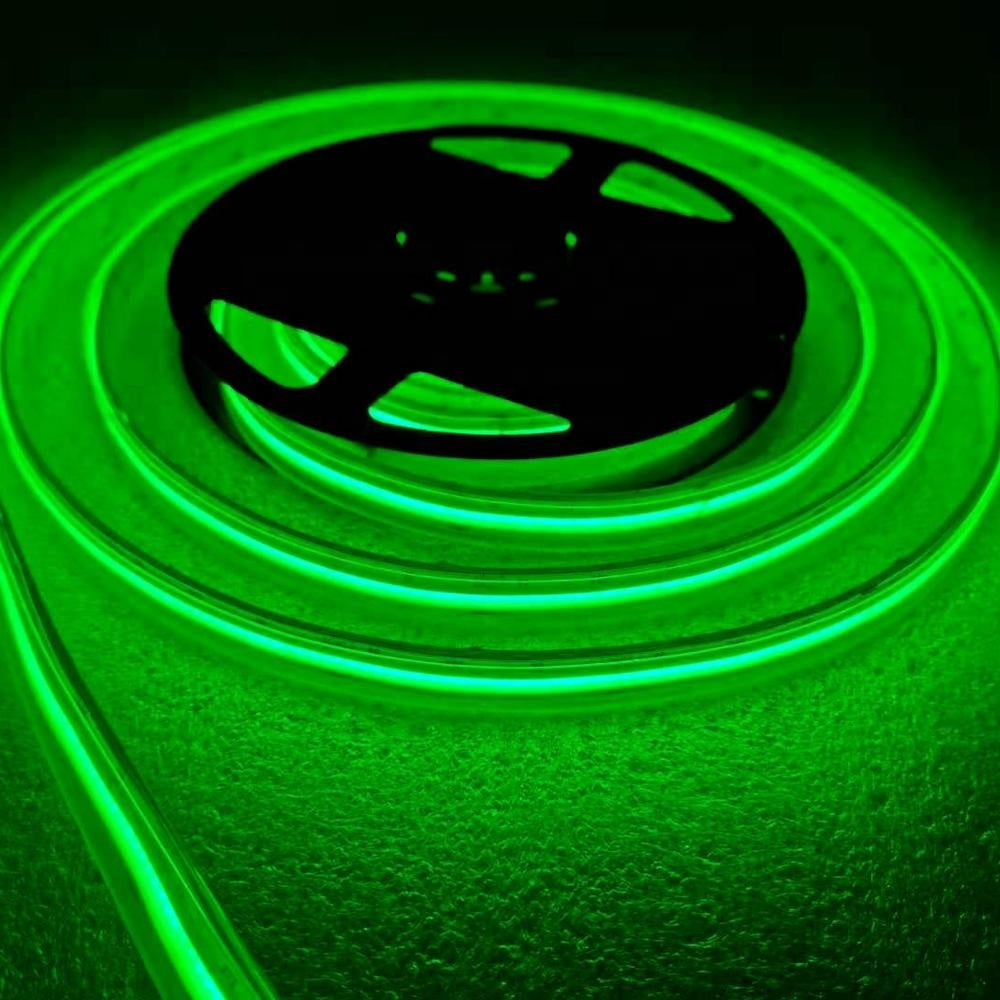

RGB+CCT LED strip 18W/m 24V, CSP dotless, 5m reel, NANO IP65

New dotless, moisture-proof RGB+CCT CSP LED strip 18W/m 24V NANO IP65 for indoor use, e.g. for bathroom lighting, 5 m reel. LED-in a light strip all RGB-colours and white light colour temperature control 2700-6500K. NOTE! Ribbon width 12mm, please take into account when choosing the profile! CSP LED-The light strips are a "redesigned version" of the spotless ones. COB LED-but slightly more efficient in terms of luminous intensity, better light quality and more uniformity. color temperature. Practical NANO IP protection, i.e. LED strip is not coated with silicone tubes, but is just a normal size thanks to the nanocoating - easier and more convenient to install!
RGB+CCT COB LEDThe light strip does not have individual LEDs, but the whole strip is more light-sensitive than a single LED. LED strip is almost flat with no dots and 840led/m, making it suitable for use in demanding lighting solutions and low profiles without LED dots sticking out! We recommend a profile height of at least 1cm, e.g. PINTA14.v2 or Uni14 profile. It is not absolutely necessary to use an LED profile for cooling in this strip, but we recommend using it whenever possible. The ribbon includes six connecting wires WARM WHITE - COLD WHITE - RED - GREEN and BLUE and a + cable. Requires RGB+CCT light controller for control. Dimmable, like all LED-and can be cut to the appropriate length every 4,167cm.

RGB+CCT COB LED strip - fully dotless novelty! LED strip RGB+CCT-with 2700-6500K white colour temperature control 18W/m 24V NANO IP65

• LED strip tested in approved laboratories, so the quality of the light strip is very good and the lighting is pleasant
• 1m long wires at both ends LEDThe strip is pre-soldered.

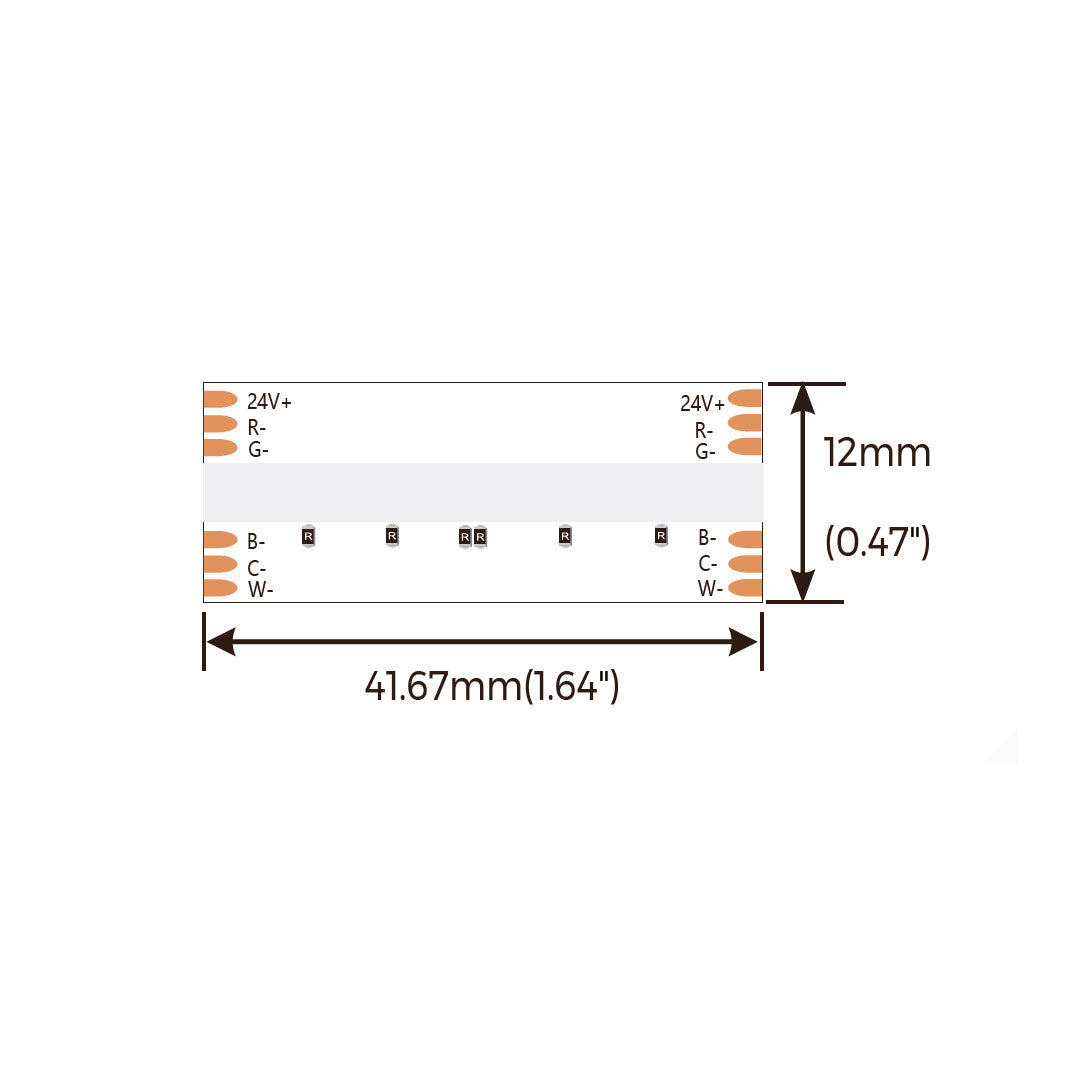

• LED strip can be cut to a suitable length at 4,167cm intervals and new output wires can be soldered to the new length of tape.
• If you want to connect RGB+CCT-or to make new supply leads, this can be done by soldering. Here LED-There are no connectors available for this ribbon.
• Dimmable, like all LED-tape
• Wide 140º beam angle, COB-small edges of the strip reduce the opening angle and direct more light output, e.g. for wall illumination
• strip can be cut off at a suitable distance of 4,167cm.
• We recommend additional cooling for this ribbon, e.g. by means of a cooling fan. LED-. COB LED-light strip is almost completely dotless results even in the thinnest profiles, such as PINTA14.v2, URA14 and Uni14
• LED is life-tested and meets LM-80 requirements
• High quality of light meets EU requirements for indoor lighting

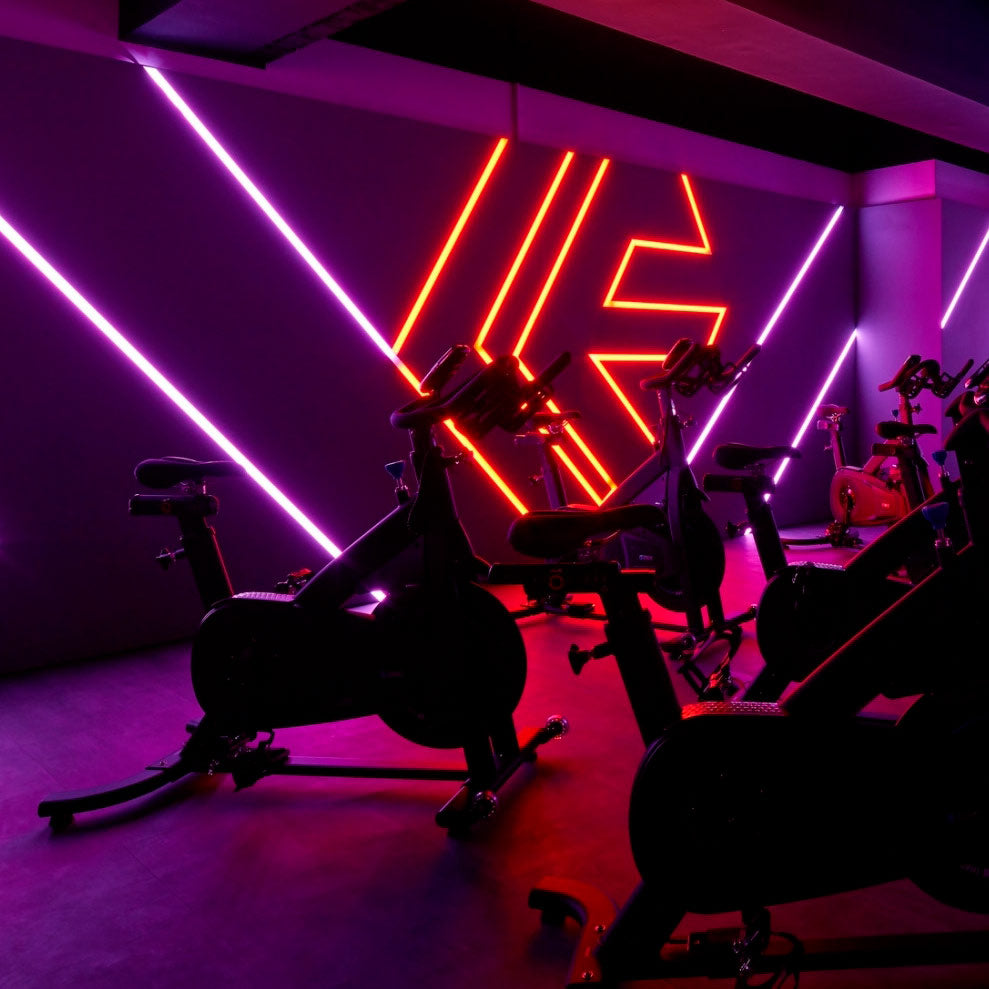

• This LED strip suitable for efficient mood lighting and restaurant lighting, for example
• 3-year manufacturer's warranty (L70> 36 000 h)

Model	DP11RGBSWW-24V
Supply voltage	24VDC
Power W/m	18W/m - typical power 74W/5m
Luminous intensity, RED	620-630nm - 95lm/m
Luminous intensity, BLUE	450-460nm - 50lm/m
Luminous intensity, GREEN	520-530nm - 380lm/m
Luminous intensity, WHITE 2700-6500K	330-340lm/m

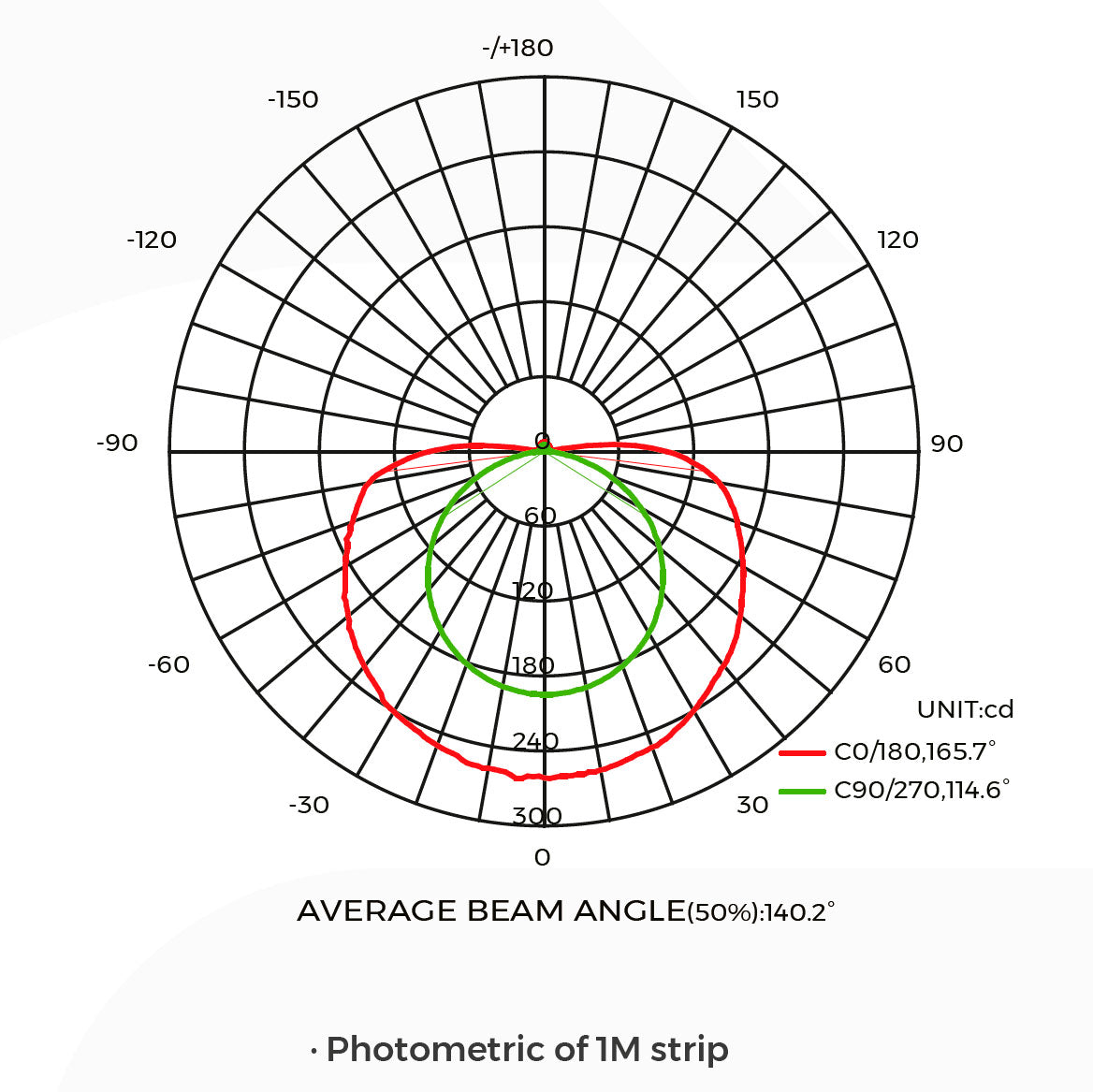

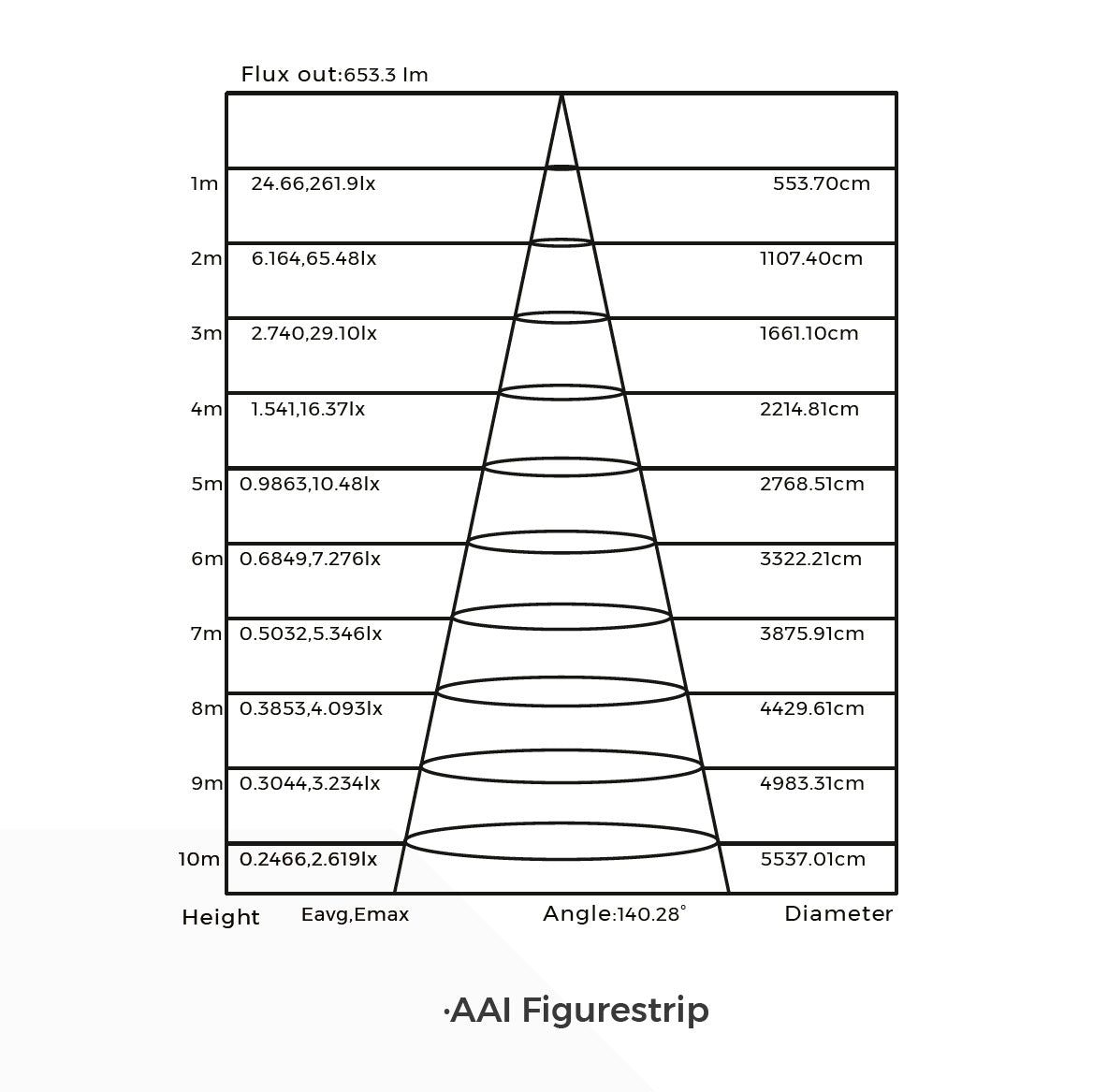

Opening angle	140º
Led	COB
LED/m	dotless
Operating temperature	-25ºC - +40ºC
Protection class	NANO IP65
CRI	-

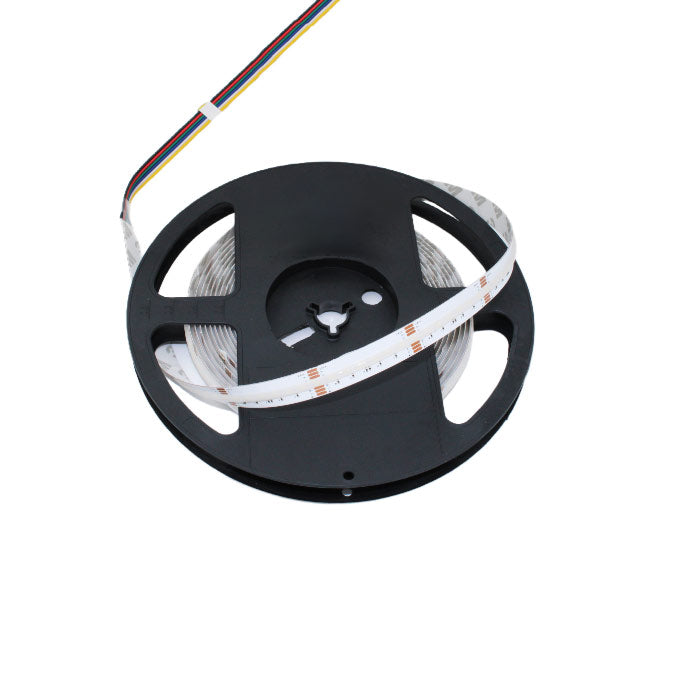

Coil length	5m
Dimensions(mm)	5000 x 12 x 1.6

Declarations of Conformity: UL, CUL, CE, RoHS

Conforms to standards:LST EN 60598-1: 2009 IEC / EN 60068-2-14: 2009 EN 62031: 2008, EN 62031: 2008 / A1: 2013, EN 62031: 2008 / A2: 2015 EN / IEC 60068- 2-14: 2009.

Packed in protective plastic. Size 187 * 183 * 20mm

Plastic coil. Size D = 190mm h = 15mm

Installation instructions are in each box
