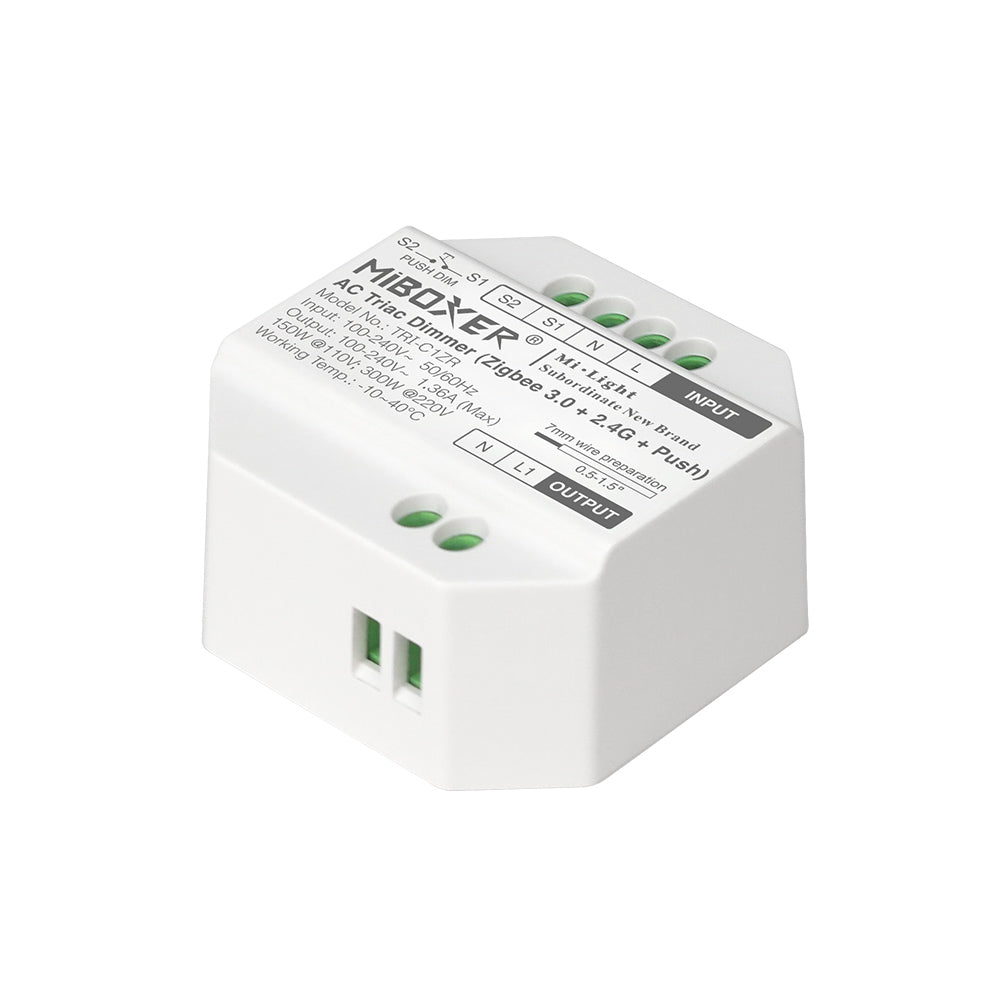

230V Triac dimmer/receiver ZigBee + 2.4G, max. 300W, Push Dim - TRI-C1ZR

This compact ZigBee 3.0 compatible TRIAC receiver enables wireless Zigbee control of TRIAC dimmable power supplies and push dim operation. You can also use wireless controllers from our 2.4G SMART LED series with this receiver! Connect luminaires or LED strips with TRIAC-dimmable power supplies to the receiver. Control lighting wirelessly using remote controls or wall controllers and Zigbee-compatible devices, and optionally with fixed spring-return switches. Also works in Breaker mode with relay function for ON/OFF in Zigbee systems.

View the user manual here.

The required wireless Zigbee remote control or push dim button is sold separately. Connects to 230V on the primary side, cutting power to the power supply. A standard 230VAC TRIAC rotary dimmer is not suitable for this installation and should be omitted or bypassed. The device also supports PUSH DIM functionality. To use PUSH DIM, purchase the required buttons (non-wireless) from your preferred supplier. These are not part of our range.

Up to 30 wireless dimmers and controllers can be paired with the receiver. A single receiver can be controlled by multiple dimmers or controllers wirelessly, even from different rooms.

In addition to wireless control, an unlimited number of spring-return switches can also be connected to the receiver.

1. ZigBee network compatibility with Philips Hue and others

2. Push-button dimming works simultaneously with e.g. Philips Hue. You only need an affordable push-button switch such as ABB Jussi. This dimmer can be installed behind the push button in a standard junction box or next to the first luminaire if desired. Push-button dimming does not require a neutral wire – two wires are sufficient.

3. Also works as an on/off switch and simultaneously with e.g. Philips Hue. You only need a simple on-off switch. With an on-off switch, this dimmer can be installed behind the switch in a standard junction box or next to the first luminaire. On-off operation does not require a neutral wire – two wires are sufficient.

Key features

• AC phase cut with ZigBee control and dimming function
• Safe and reliable full isolation technology
• 100-240VAC input and 100-240VAC output
• 1 channel, maximum 300W output (LEDs max. 300W)
• TRIAC dimmable and MOSFET dimmable
• Trailing edge dimming
• Compatible with Zigbee remote controls and controllers
• Innovative minimum brightness adjustment function
• Dims individual colours of dimmable LED luminaires, traditional incandescent lamps and halogen lights
• Input and output via screw terminals, safe and reliable
• Compact size, easy to install in a junction box
• Dimensions: 49 x 49 x 25 mm
• Operating temperature: -10 to +40°C
• Protection rating: IP20
