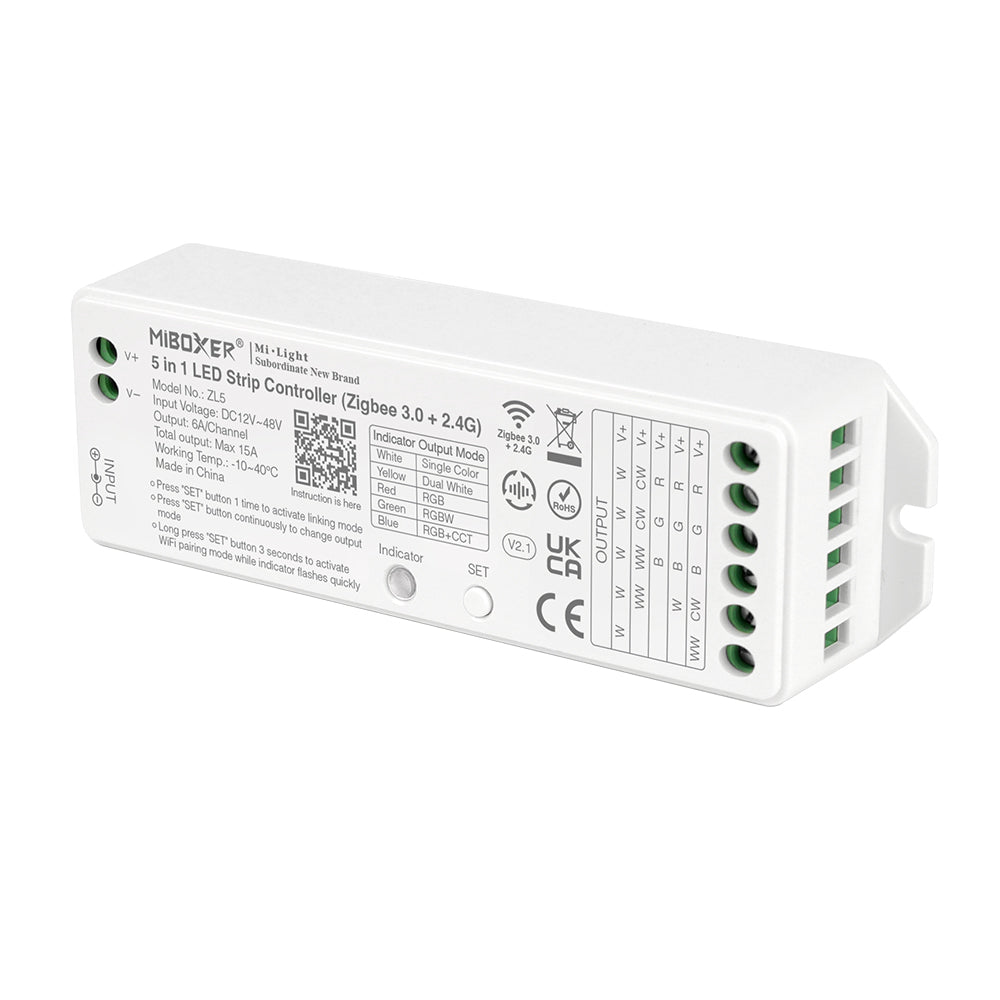

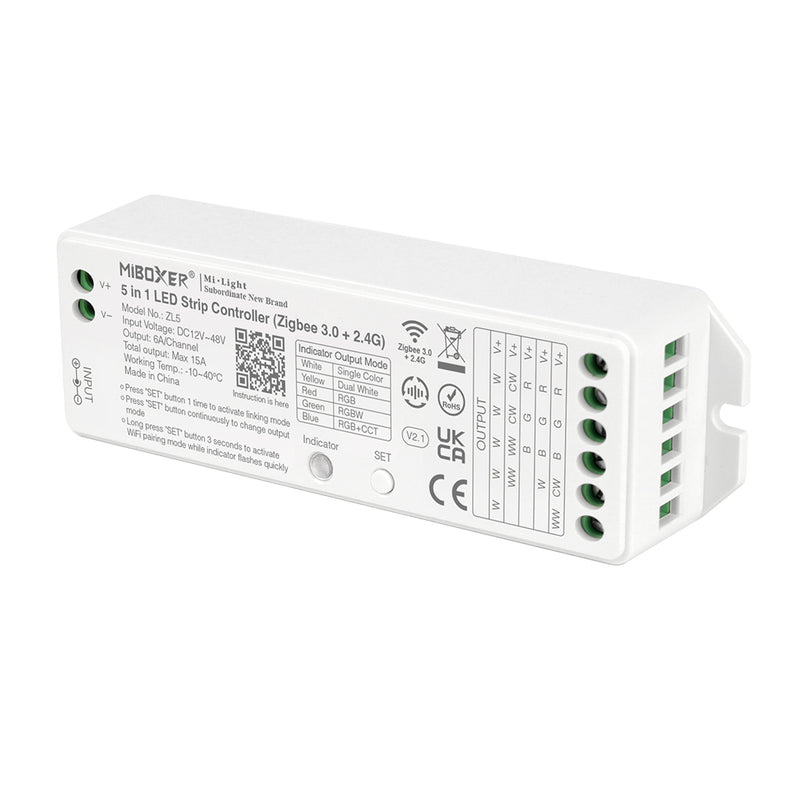

5 in 1 ZigBee LED controller 12-48V 5-channel for all types of LED strips + 2.4G control - Miboxer ZL5

Zigbee wireless 5-in-1 LED controller for all types of 12-48V LED strips with five channels (5×6A max 15A). You can control single-colour, tunable white (CCT), RGBW and RGB-CCT 5-in-1 LED strips. Additionally, you can use wireless controllers from our 2.4G SMART LED series with this controller! The colour mode can be easily selected using a switch on the controller. Control via controllers from the same Zigbee series or through the Zigbee network using a computer, phone or tablet. Requires a Zigbee hub such as Philips Hue or Amazon Echo Plus to operate. Compatible with many Zigbee devices.

Zigbee 3.0 compatible wireless LED controller for all types of LED strips: single-colour, RGBW, CCT or RGB+CCT – five channels 5×6A with selectable mode + 2.4G wireless control

Compatible with the Zigbee 3.0 system, this Zigbee lighting device can be connected via a Zigbee hub or another bridge with Zigbee functionality, such as Amazon Echo Plus or Philips Hue. (Check compatibility with your device.) Additionally, you can use wireless controllers from our 2.4G SMART LED series with this controller!

The controller works with remote controls from our Zigbee series or other Zigbee products, and dimming & colour selection operates smoothly. The controller can also be controlled via a Zigbee hub using a smartphone, computer or tablet.

The controller is installed between the power supply and the LED strip, meaning control takes place on the secondary side. The power supply therefore does not need to be dimmable; the controller works with all 12-48V constant voltage single-colour, CCT, RGBW and RGB+CCT LED strips. Operating range up to 30 m between two devices. Wide light output adjustment range from 0.1% to 100%.

Maximum power 5 × 6A, so each channel can be connected to a maximum of 6A, with a total maximum of 15A. Any 12-48V LED strips or luminaires can be connected directly to the controller. The colour mode is selected using switches, i.e. the controller is set to operate in the correct mode with single-colour LED strips, RGBW, CCT or RGB+CCT strips.

One controller can be controlled by multiple buttons, for example if you want lighting control from both doorways in a room.

The controller offers smooth brightness dimming and colour adjustment via PWM output. Lighting can be dimmed and colour temperature can be adjusted. Multiple zones can be controlled separately or synchronously with constant receivers for each area. Built-in dimming patterns are available and are saved even when the lights are switched off.

Features

• 5-channel constant voltage Zigbee LED controller available for 12-48VDC and max. 6A per 5 channels
• Zigbee 2.4G RF technology, Zigbee DIM, CCT, RGBW and RGB+CCT lighting device, compatible with Zigbee Mesh network. Additionally, you can use wireless controllers from our 2.4G SMART LED series with this controller!
• Compatibility: Zigbee Universal Gateway/Coordinator, Zigbee RGBW, CCT, DIM lighting controllers
• Enables LED lighting control when the controller is connected to a Zigbee hub and with Zigbee remote control/controller.
• Supports single-colour, RGBW and CCT LED lighting (RGBWW, i.e. light colour can be freely adjusted and the desired shade of white can be selected from the tunable white strip)
• Can be controlled via a Zigbee hub using smartphones, computer etc. Connection and disconnection via Zigbee hub.
• Without connection to a Zigbee hub, can be directly connected to one Zigbee-compatible controller. When connected to a Zigbee hub, can use 30 separate controllers.
• Storage capability for different scenes

Operating voltage: 12-48V DC.

Power: max. 5 × 6A, i.e. 180-720W depending on voltage

Operating temperature: -20°C to +50°C

Operating range: <30m indoors

Protection rating: IP20

Dimensions: 38 × 124 × 24 mm

3-year warranty

Requires a Zigbee remote or rotary controller to operate, and a Zigbee hub if needed.
