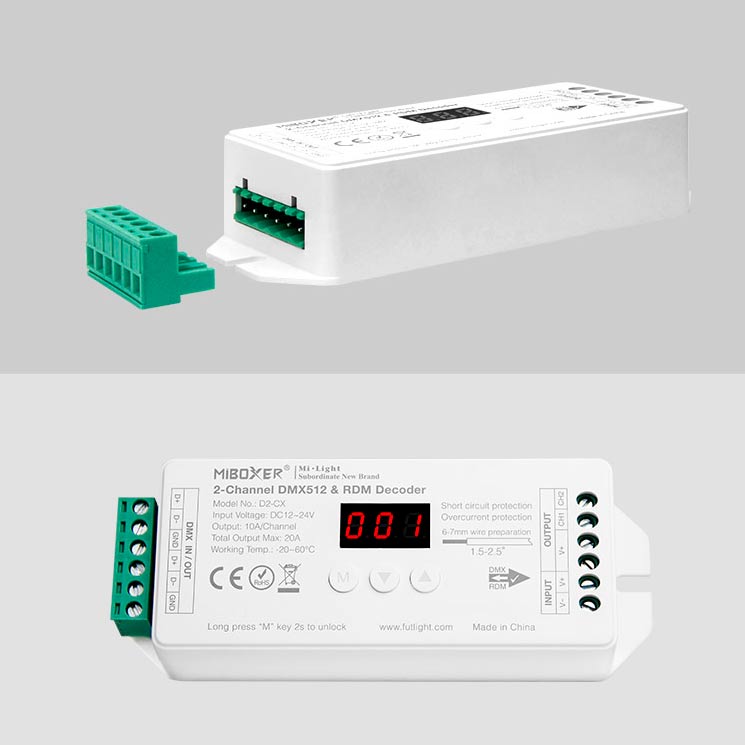

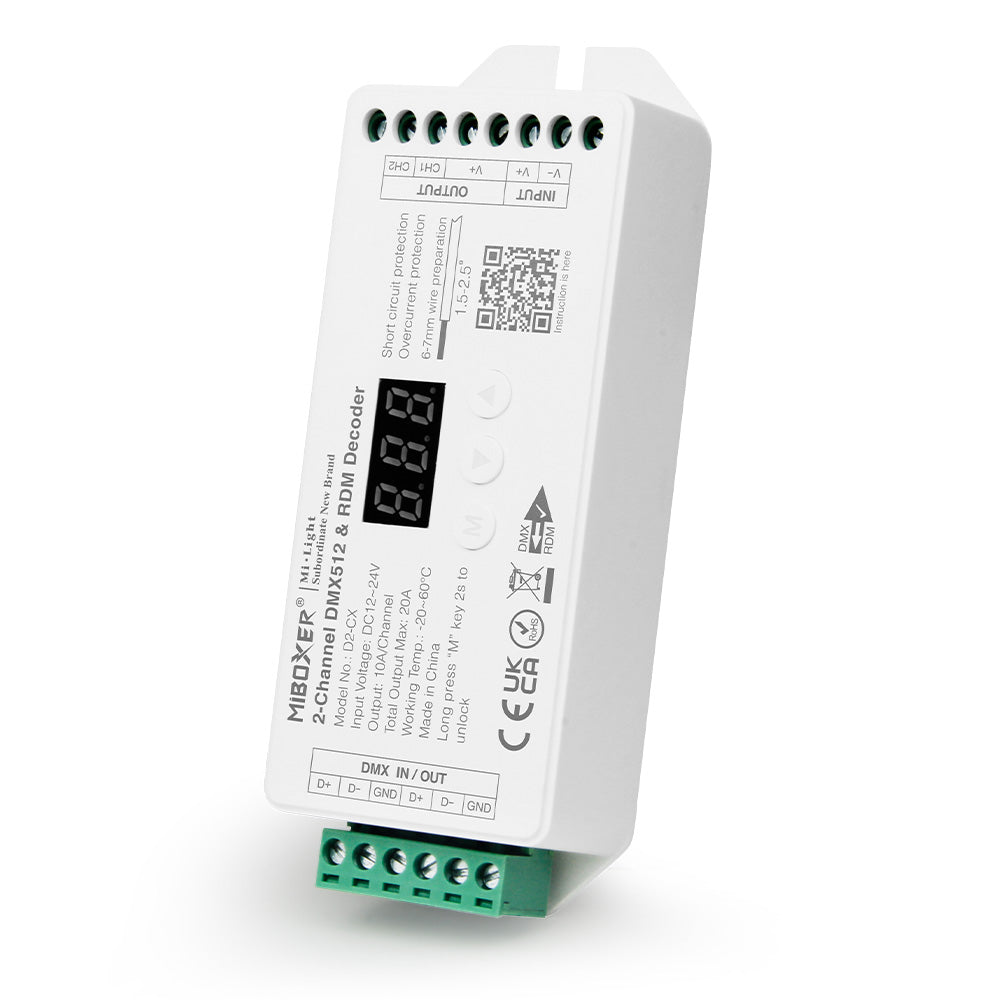

CCT DMX Decoder 12-24VDC 2 channels, max. 20A DMX512 & RDM - D2-CX

The DMX Decoder 12-24VDC is a key solution that provides a professional way to efficiently control LED lighting. The MiBoxer D2-CX decoder allows for CCT color temperature adjustable lighting control using the DMX512 protocol, making it an excellent choice for both professionals and enthusiasts. The operating voltage range of 12-24V DC ensures flexible suitability for various lighting projects, allowing you to easily select the precise settings needed. Multiple features, such as adjustable PWM frequency and selectable dimming curves, make this decoder a perfect tool for lighting solutions.

Features

• DMX512 and RDM support: Easy control with remote settings.
• Adjustable PWM frequency: Customizable to 500Hz or 2000Hz as needed.

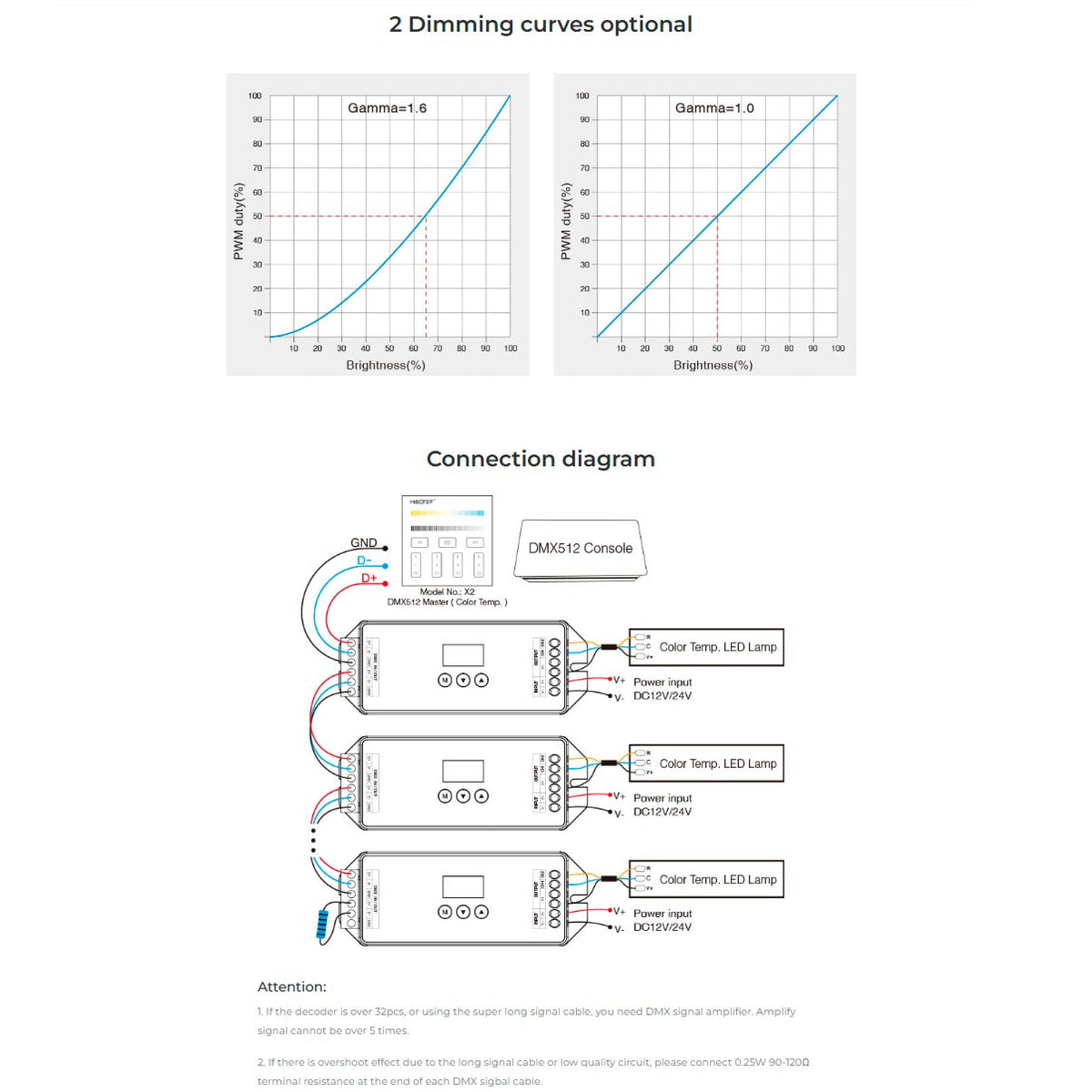

• Dimming curves: Choice of logarithmic and linear dimming.
• Safety: Protection against short-circuit and overcurrent situations.
• Digital display: Ease of use is evident from clear display settings.
• Operating temperature: Wide range from -20°C to +60°C, with IP20 protection class.

Instructions for Use

1. Setting the DMX address: Press the "M" button to enter the settings mode.
2. Changing the PWM frequency: Ensure the correct frequency by pressing the "M" button as needed.
3. Selecting the dimming curve: Choose your desired dimming option.Factory reset: Press the "M" button for 10 seconds to restore factory settings.

Frequently Asked Questions

Can the DMX Decoder 12-24VDC be used outdoors? We recommend protection from moisture.

Do I need a signal amplifier? Yes, if there are more than 32 decoders or the cable length is long.

Summary

The DMX Decoder 12-24VDC is an excellent choice for flexible and precise LED lighting control, suitable for a wide range of applications, creating excellent opportunities for your lighting projects.
