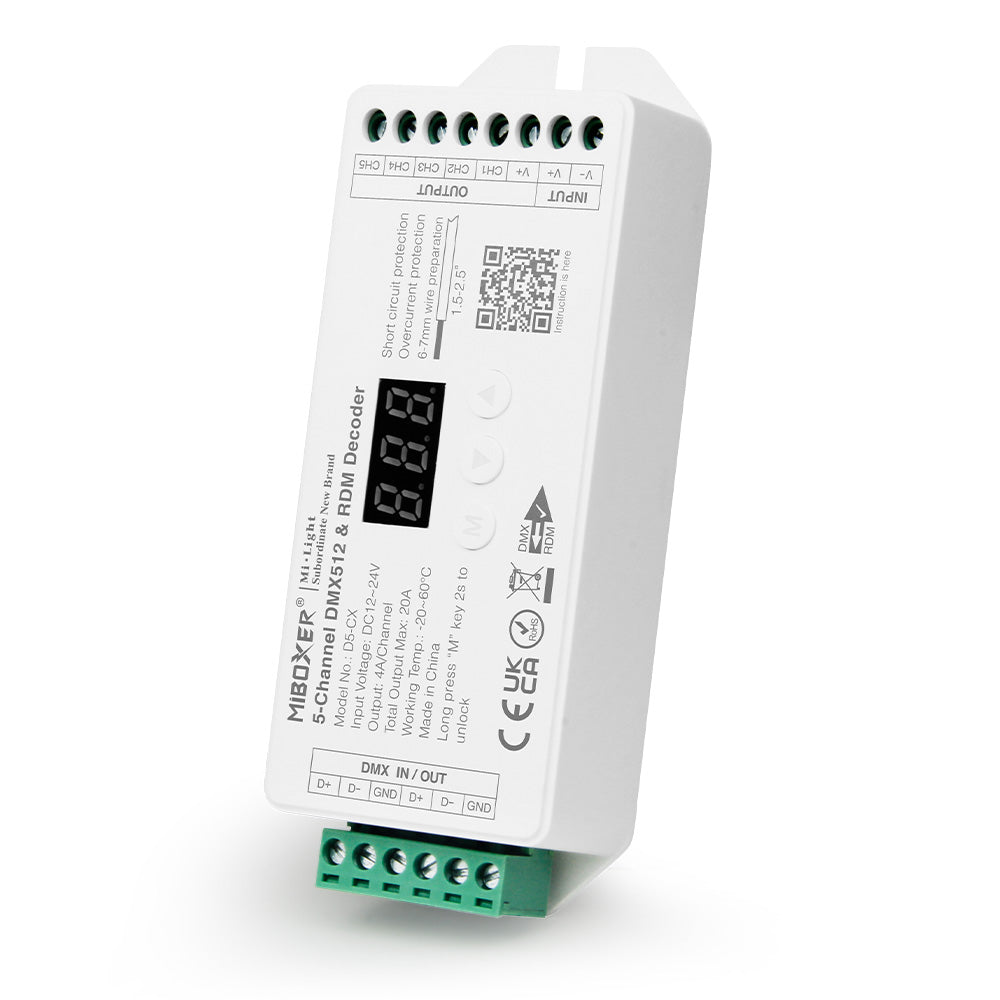

RGB+CCT DMX Decoder 12-24VDC 5 channels max. 20A DMX512 & RDM - D5-CX

The DMX decoder RGB+CCT offers an excellent solution for controlling LED lighting. The MiBoxer D5-CX is a versatile decoder that supports the DMX512 protocol and RDM function, enabling the development of professional and hobbyist-level lighting solutions. Thanks to this decoder, you can easily control RGB+CCT LED strips with precision. Its operating voltage ranges from 12-24V DC, and it allows for controlling five channels, each with a maximum load of 5A, totaling 20A.

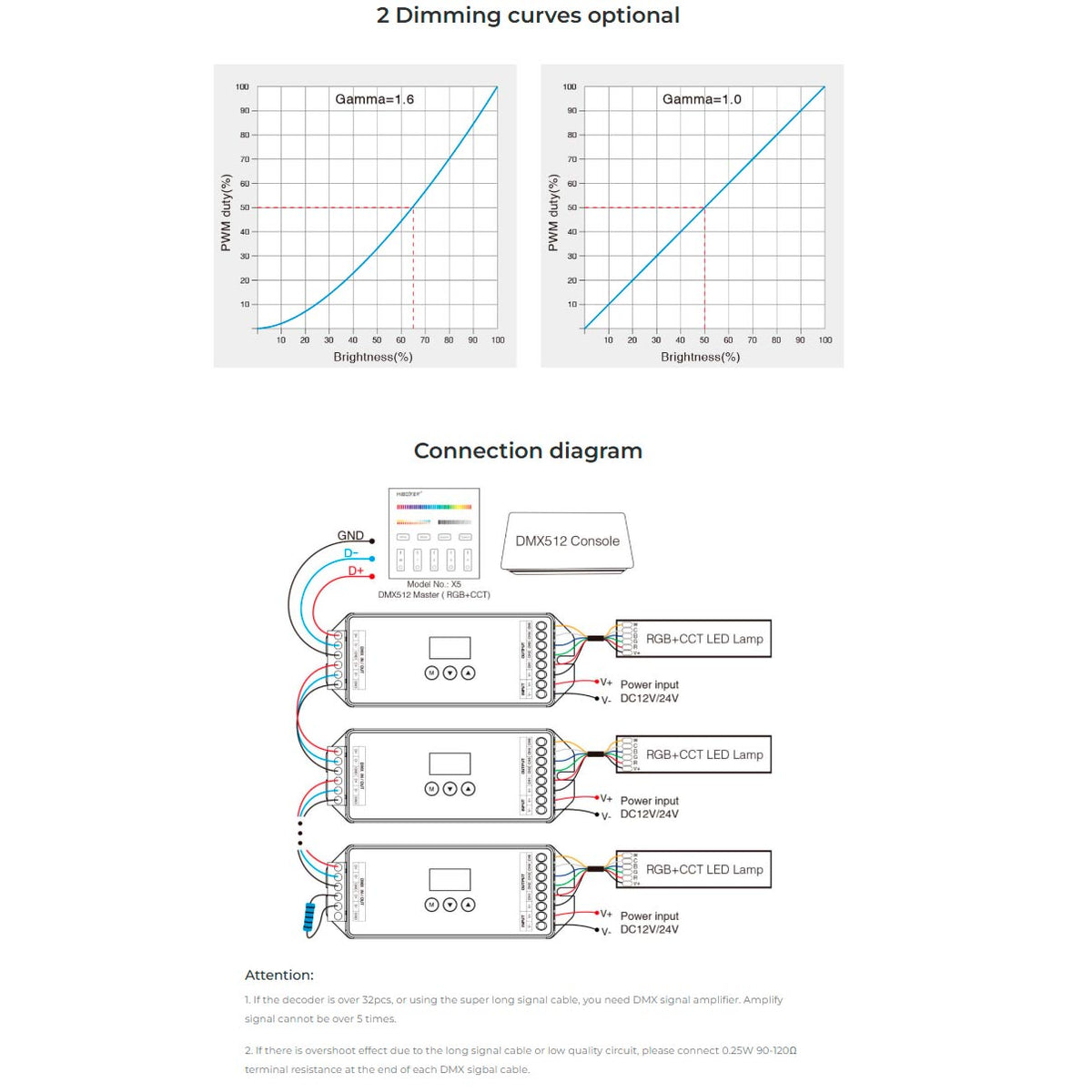

The MiBoxer D5-CX is equipped with many excellent features. Firstly, DMX512 and RDM support ensure compatibility with more complex systems, and remote device settings can be managed via the RDM function. Additionally, the decoder has an adjustable PWM frequency, allowing you to choose between 500Hz or 2000Hz depending on your lighting needs. Dimming curves offer the option of logarithmic and linear dimming programming, which enables precise fine-tuning of the lighting exactly as desired.

Features

• Short-circuit and overcurrent protections ensure safe use.
• Digital display facilitates DMX address and system parameter settings.
• Operating temperature range of -20°C to +60°C makes it durable in various environments.
• Compact and small structure makes installation easy.

The device also includes clear instructions for changing the DMX address and PWM frequency, making it a user-friendly option. Refer to the full user manual here. The MiBoxer D5-CX is the perfect choice for those seeking a high-quality and reliable DMX decoder for RGB+CCT LED lighting.

Frequently Asked Questions

Can the D5-CX be used outdoors? The device is not waterproof, so we recommend a waterproof enclosure.

Do I need a DMX signal amplifier? Recommended if the system includes more than 32 decoders or the signal cable is particularly long.
