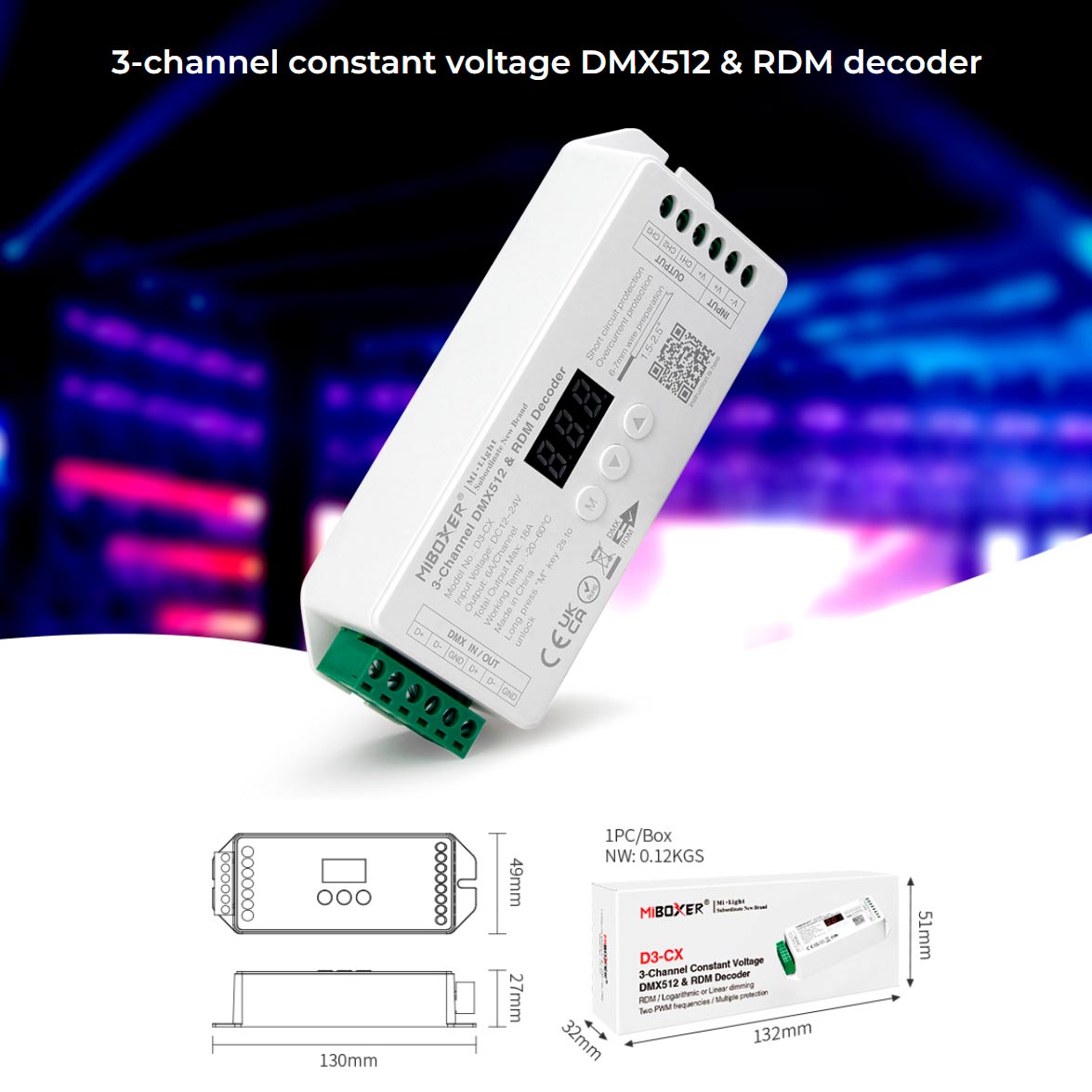

RGB DMX decoder 12-24VDC 3 channels max. 18A DMX512 & RDM - D3-CX

New DMX512 & RDM Decoder – Versatile and Precise RGB LED Lighting Control.

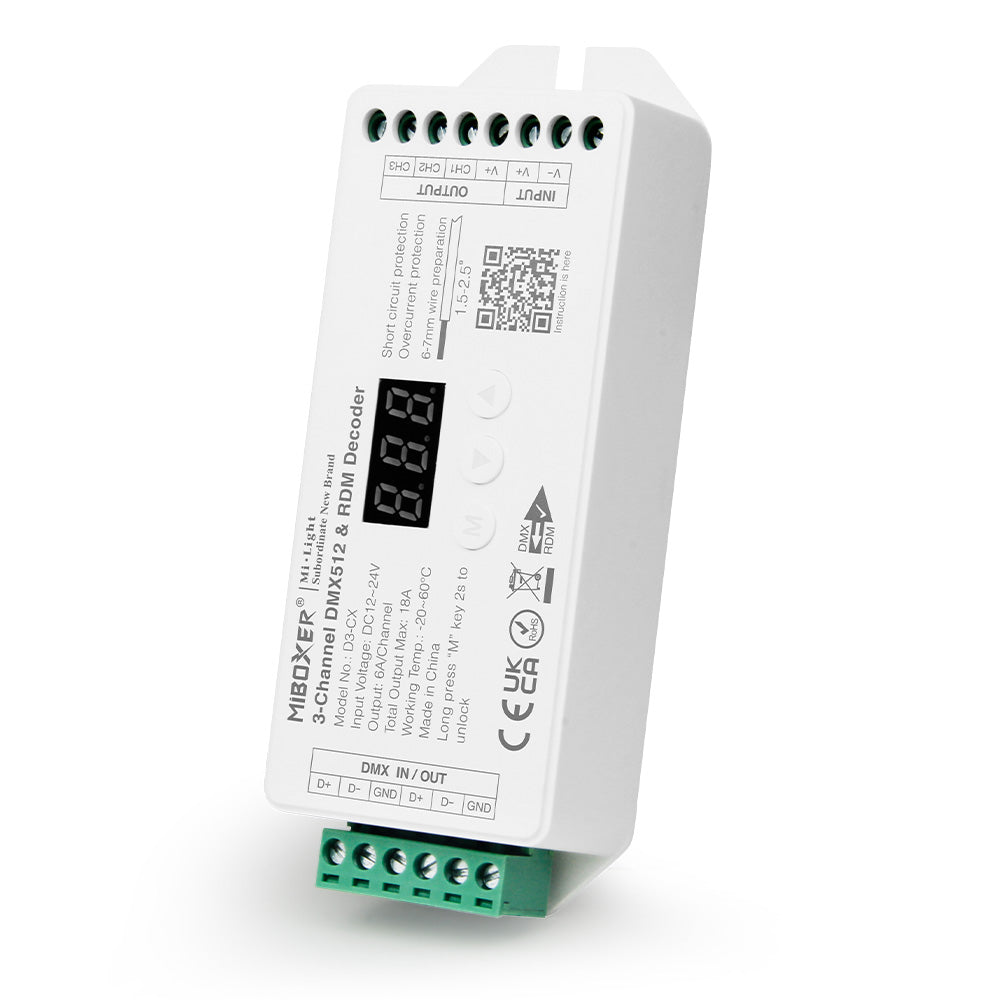

The MiBoxer D3-CX offers professionals and enthusiasts the ability to precisely control RGB LED strip lighting using the DMX512 protocol and RDM function. This decoder supports a wide operating voltage range (12–24V DC) and allows control of LED lights on three channels, each with a maximum load of 6A, for a total of 18A. See the user manual here.

Features

• DMX512 and RDM support: Complies with the DMX512 standard and allows remote device settings management using the RDM function.
• Adjustable PWM frequency: Choose 500Hz or 2000Hz according to lighting needs.
• Dimming curves: Offers logarithmic and linear dimming for fine-tuning lighting.
• Safety: Includes short-circuit and overcurrent protection, as well as a recovery function.
• Digital display: Easy setting of DMX address and system parameters.
• Operating temperature: Functions in environments from -20°C to +60°C. Protection class IP20.

Technical Specifications

Instructions for Use

1. Setting the DMX address:
   • Press the "M" button for 2 seconds to enter setup mode.
   • Use the ▲ and ▼ buttons to select the address (001-512).
   • Long-pressing speeds up address browsing.
2. Changing the PWM frequency:
   • Press and hold the "M" button for 3 seconds until the PWM frequency selection option appears on the display.
   • Select 500Hz or 2000Hz using the ▲ and ▼ buttons.
3. Selecting the dimming curve:
   • Select linear or logarithmic dimming curve with the ▲ and ▼ buttons.
4. Factory reset:
   • Press the "M" button for 10 seconds until the display flashes and settings are reset.

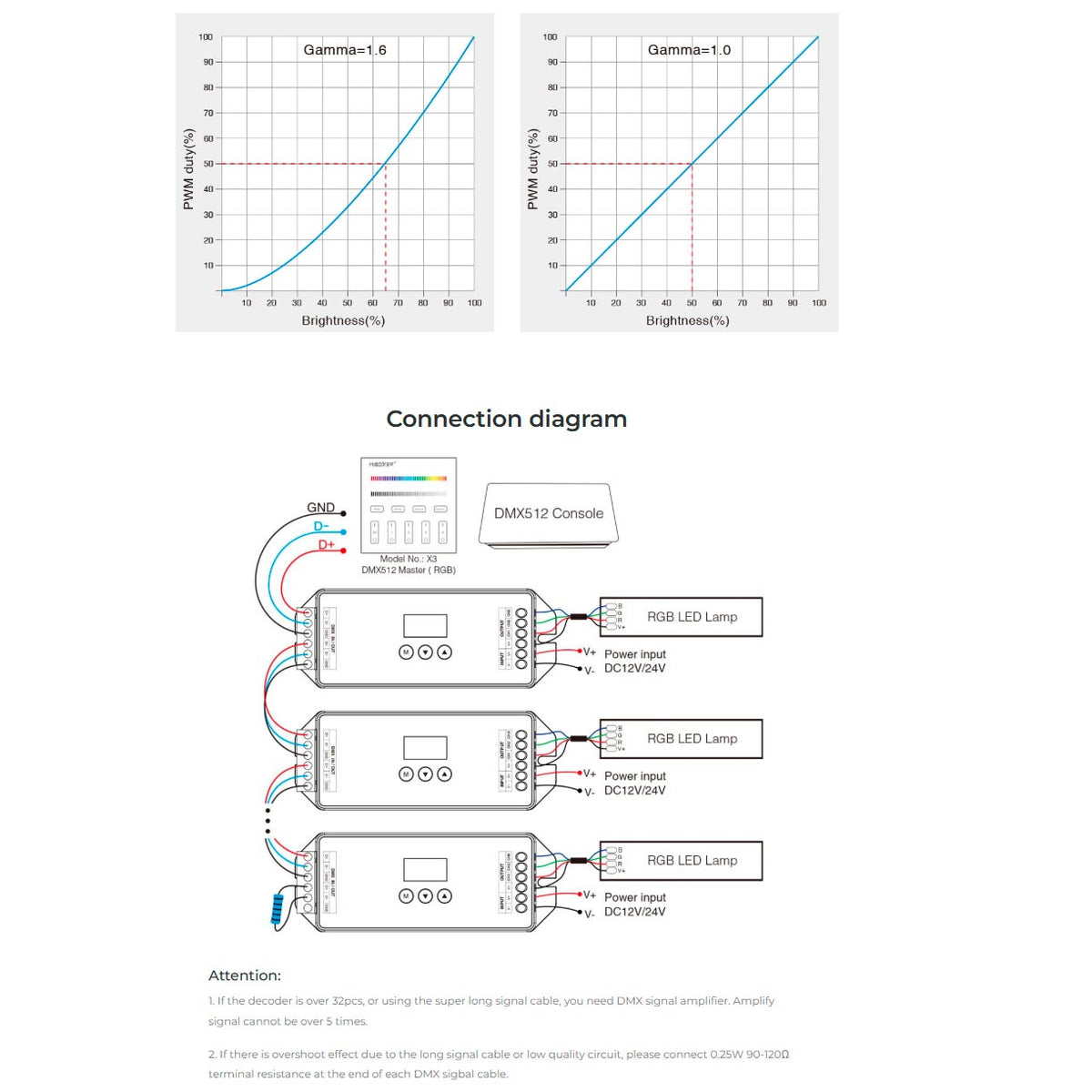

5. Installation instructions:
   • Connect the decoder to a power supply (12–24V DC) and connect the LED luminaires to the channels.
   • Connect the DMX signal cable to the DMX IN port.
   • Test that the luminaires respond to DMX controller commands.

Frequently Asked Questions

Can the D3-CX be used outdoors?

The device is not waterproof. For outdoor use, we recommend installing it in a waterproof enclosure.

Do I need a DMX signal amplifier?

If the system includes more than 32 decoders or the signal cable is particularly long, a signal amplifier is recommended.

Summary

The MiBoxer D3-CX is an ideal choice for multi-channel LED lighting projects requiring precise and flexible control. Its wide compatibility and ease of use make it excellent for both professional use and demanding hobbyists.
